A power distribution system is the complete chain of equipment that takes incoming utility power and delivers it safely to every load in a plant or building — stepped down, metered, protected and split across dozens or hundreds of individual circuits. Get any link in that chain wrong — undersized cable, uncoordinated protection, a missing bus-tie — and a fault in one motor can black out an entire floor instead of tripping a single breaker.

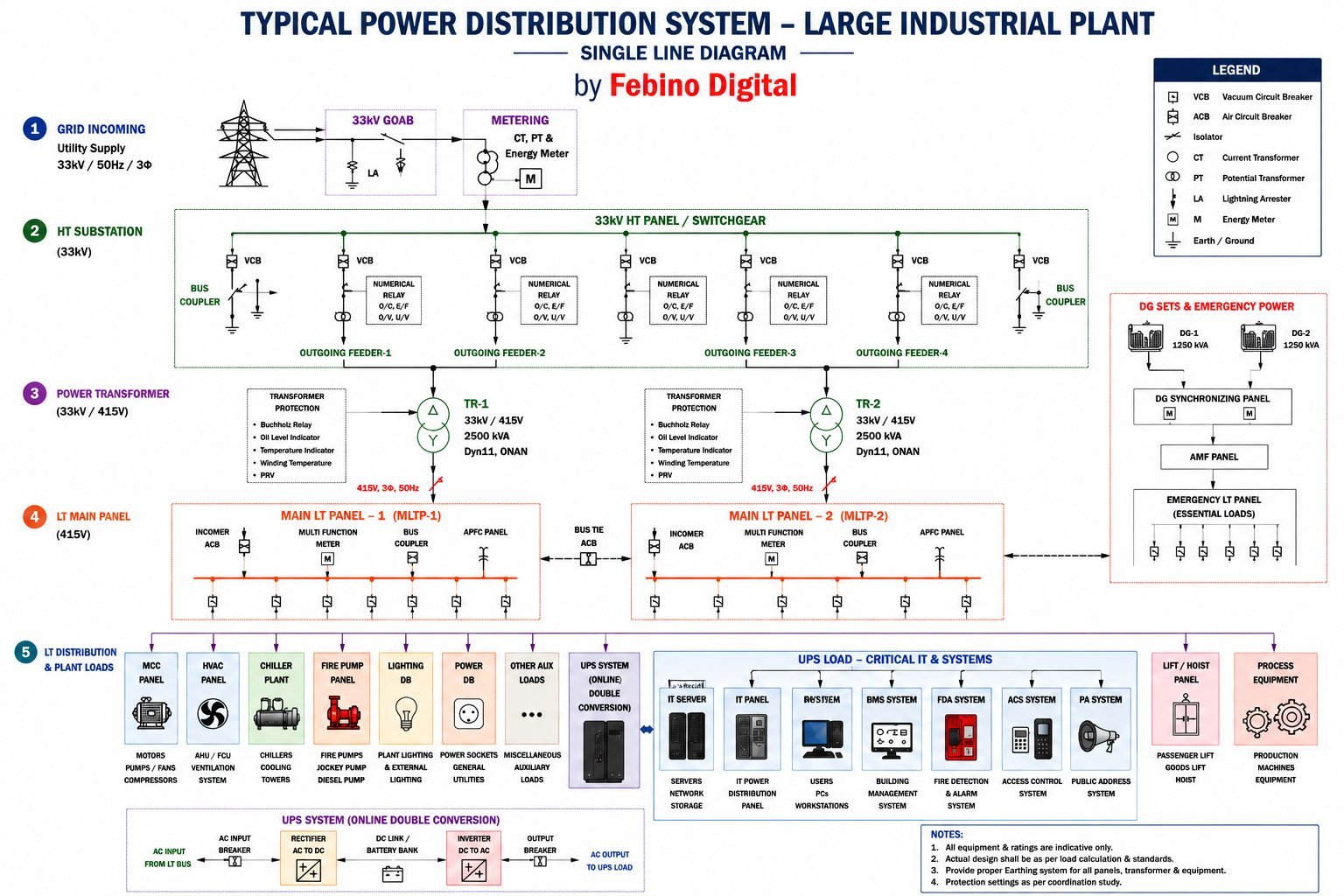

The diagram above shows a typical layout for a large industrial plant: HT grid incoming at 33kV, stepped down through dedicated transformers to 415V, routed through LT main panels with bus-tie redundancy, and finally split into MCC, HVAC, fire, lighting, UPS and process loads — backed up by synchronized DG sets for essential supply during a grid outage.
A power distribution system is the complete chain of equipment that takes incoming utility power (typically 33kV or 11kV HT supply) and steps it down, protects it, and distributes it safely to every load in a building or plant — through the HT substation, power transformers, LT main panels, and final distribution boards for motors, lighting, HVAC, fire, UPS and other loads.
A single line diagram represents a three-phase power system using a single line and standard symbols for breakers, transformers, relays and panels. It is the primary reference document used to design, install, protect-coordinate and later maintain or troubleshoot an electrical distribution system.
When more than one diesel generator is used to supply emergency power, a DG synchronizing panel matches their voltage, frequency and phase before connecting them to a common bus, so multiple sets can share load smoothly without tripping on load imbalance. An AMF (Auto Mains Failure) panel then automatically starts and transfers essential loads to the DG bus when utility power fails.
The UPS system draws its input from the LT distribution bus like any other load, but its output feeds a dedicated IT/data centre distribution board — so that servers and networking equipment keep running through both a mains failure and the few seconds it takes a DG set to start and stabilise, which the DG-and-UPS combination bridges seamlessly.
Febino Digital provides both — single line diagram design and protection coordination studies, followed by supply, panel fabrication, installation, commissioning and AMC of the complete distribution system, from HT switchgear down to the final distribution boards.
